The product can be applied to places requiring anti-glare measures, such as badminton courts, table tennis halls, indoor basketball courts, supermarkets, gyms, factories, etc.
The lamp body is made of GB 6063 profiled aluminum with good heat dissipation
The surface is treated with anodic oxidation, ensuring a corrosion-resistant appearance that is neat and aesthetically pleasing
The aluminum substrate is a monolithic board with good heat dissipation
Anti-glare features an integrated PC diffusion plate + 12mm deep anti-glare honeycomb mesh

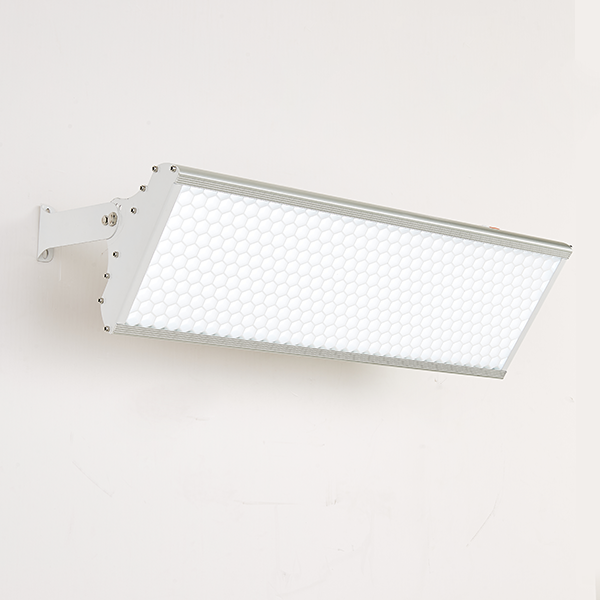

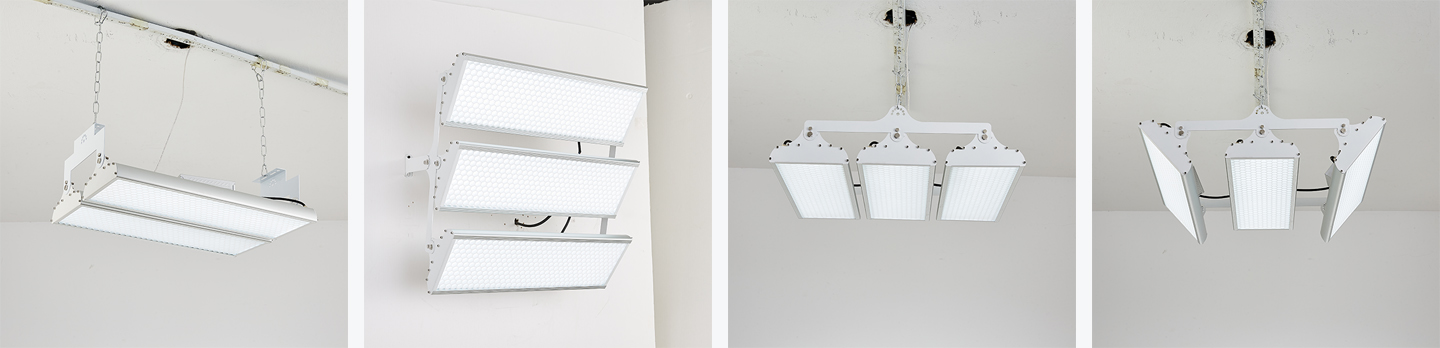

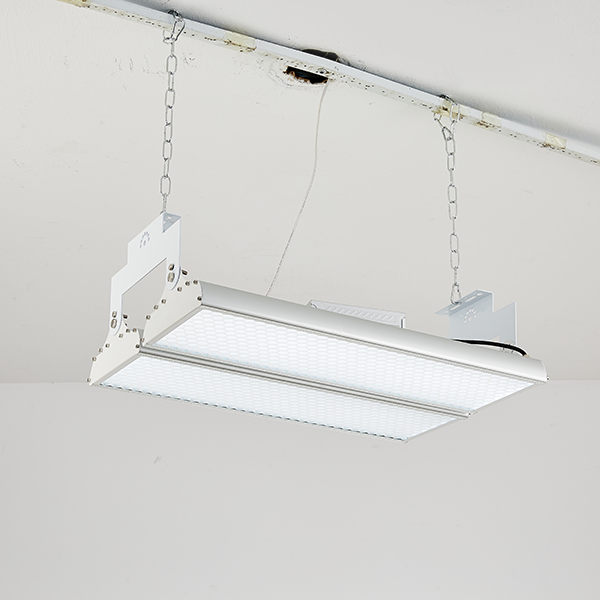

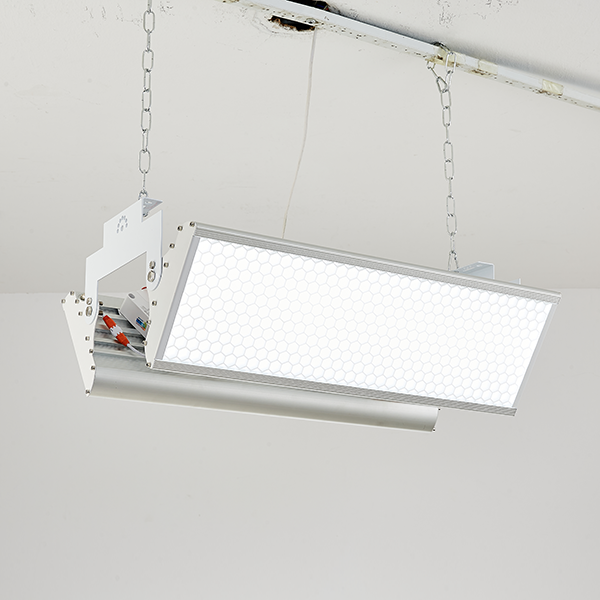

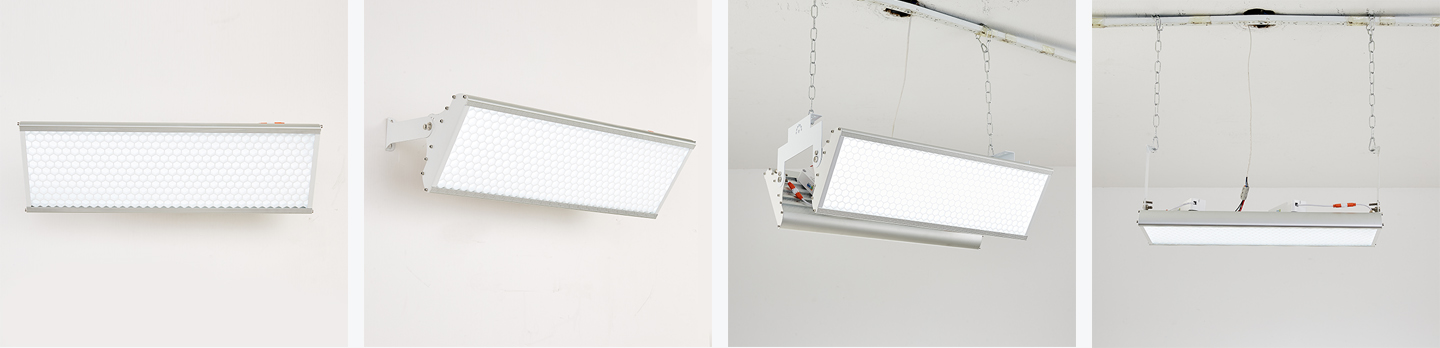

Installation methods: lifting or wall mounting are optional
Model | Power | Optical lens | Product Dimensions（mm） | Total Lamp Weight | Light Source | Protection Level |
OUNNUO GR-A-2001 | 60-100 | Anti-glare mesh 90° | H200*L580 | 1980G | 3030\2835-6C20B*1 | 40 |
OUNNUO GR-A-2002 | 120-200 | Anti-glare mesh 90° | H200*L1180 | 3500G | 3030\2835-6C20B*2 | 40 |
OUNNUO GR-A-2501 | 80-150 | Anti-glare mesh 90° | H250*L580 | 2310G | 3030\2835-6C25B*1 | 40 |
OUNNUO GR-A-2502 | 150-250 | Anti-glare mesh 90° | H250*L1180 | 4390G | 3030\2835-6C25B*2 | 40 |
OUNNUO GR-A-3001 | 100-150 | Anti-glare mesh 90° | H300*L580 | 2640G | 3030\2835-6C30B*1 | 40 |
OUNNUO GR-A-3002 | 200-300 | Anti-glare mesh 90° | H300*L1180 | 5280G | 3030\2835-6C30B*2 | 40 |

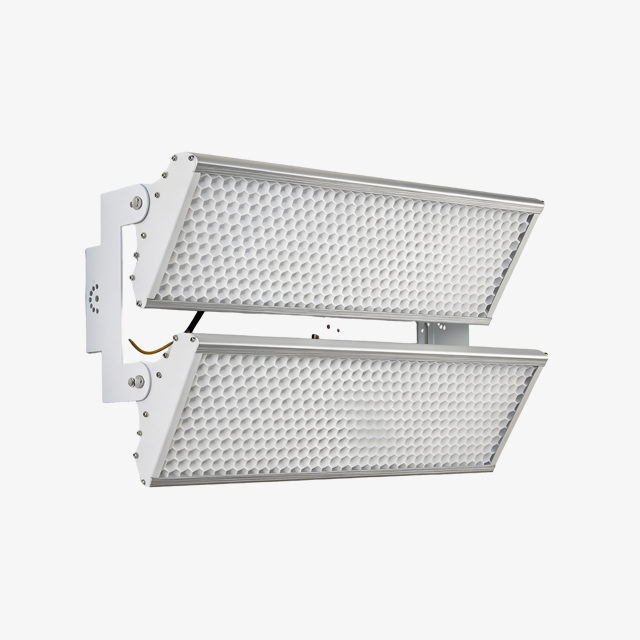

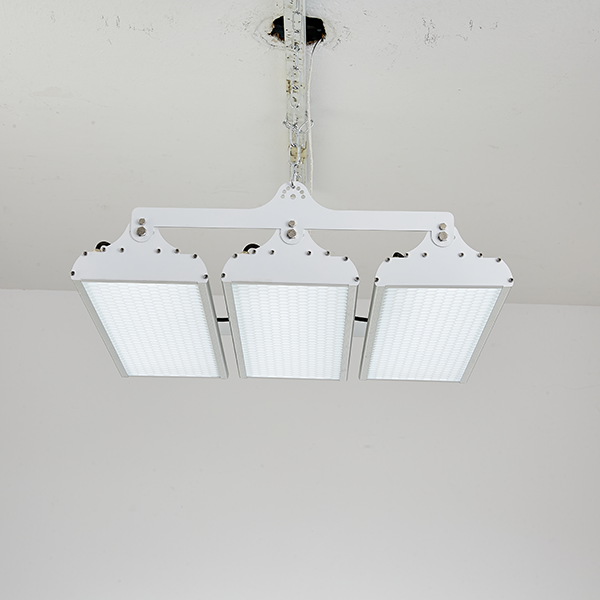

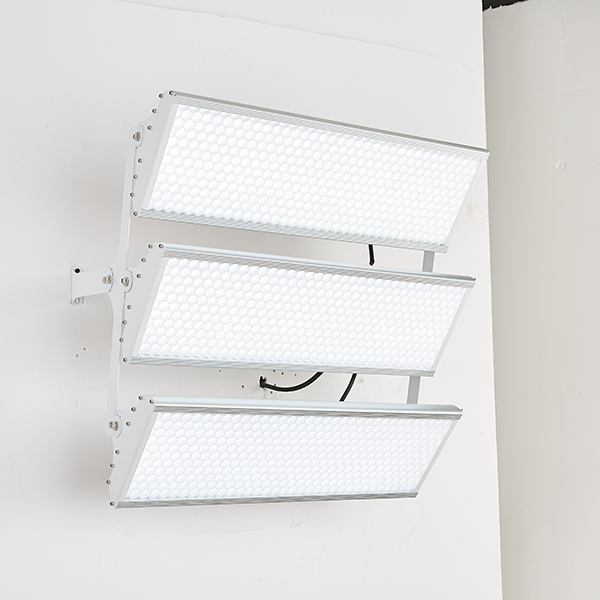

The models listed above are for single-unit configurations; depending on specific application requirements, each model can be configured with two or three units. | ||||||
