The product can be widely applied to outdoor tennis courts, pickleball courts, basketball courts, and other similar venues

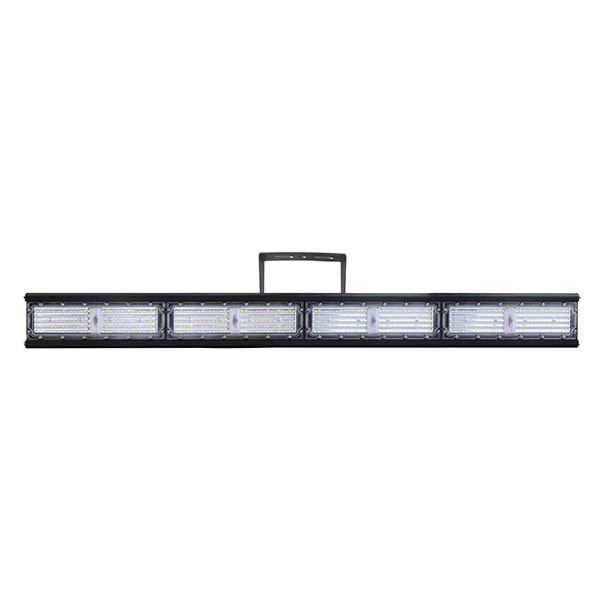

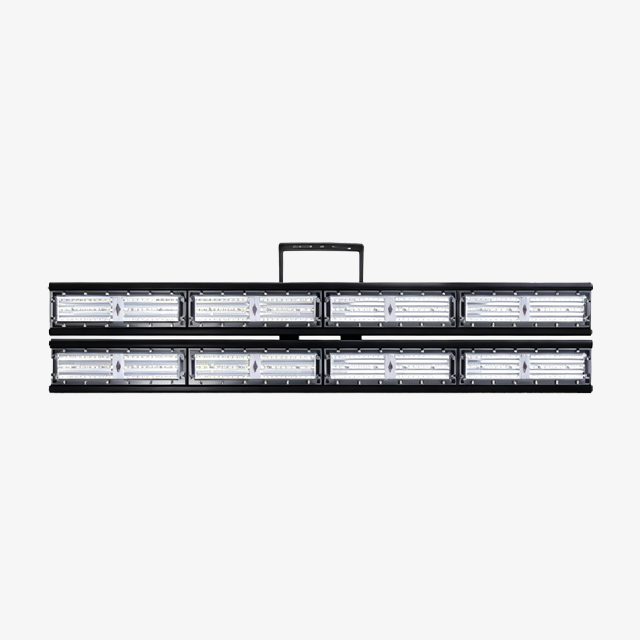

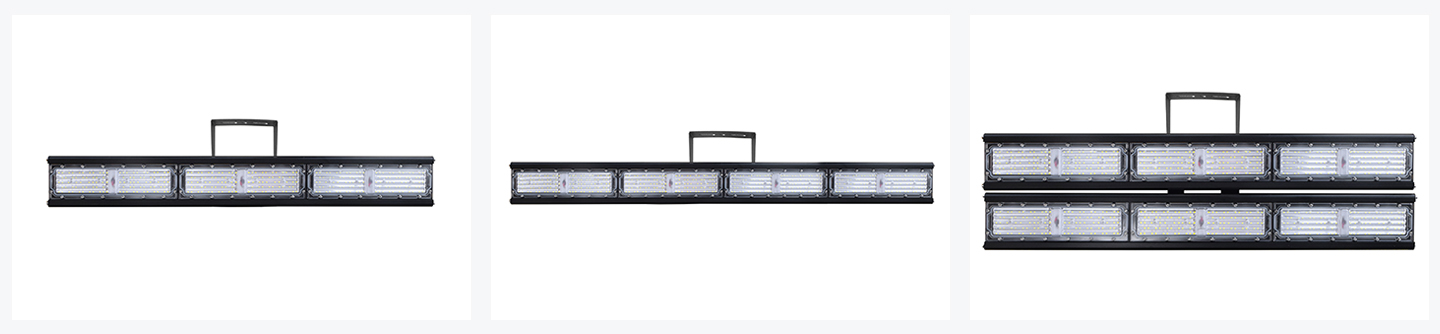

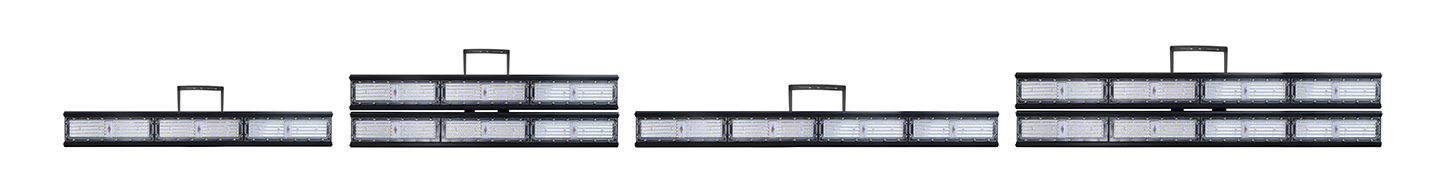

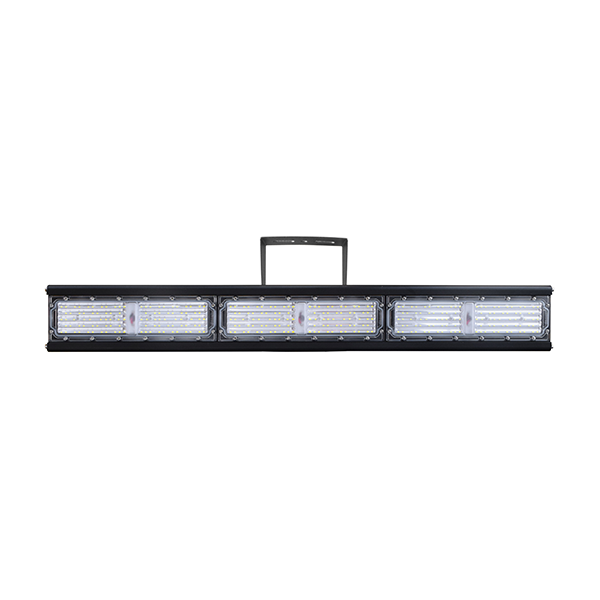

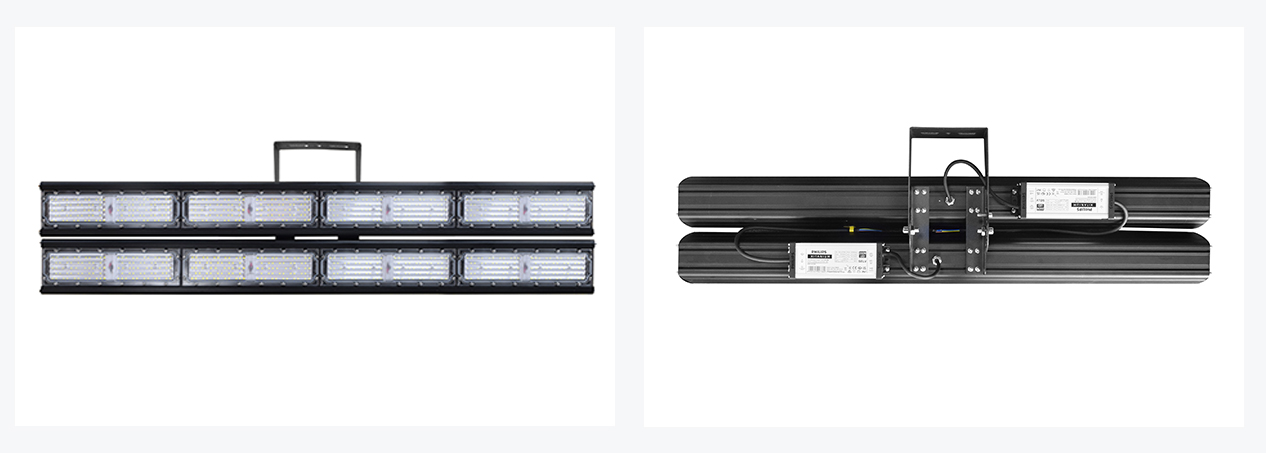

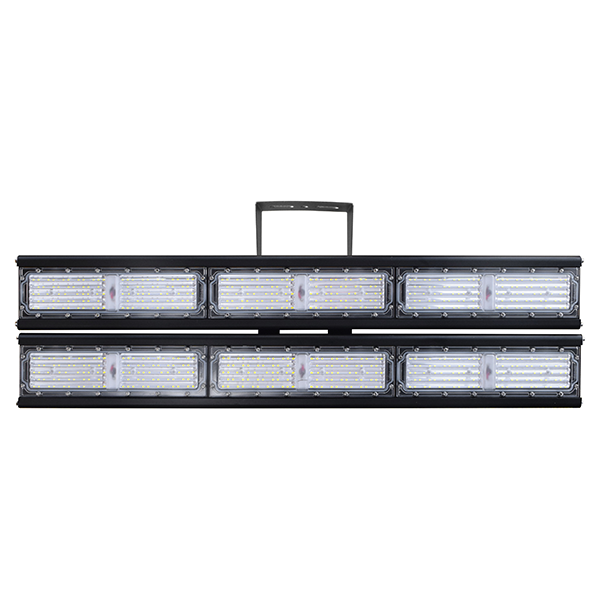

L series anti-glare floodlight dedicated fixtures, with power ranging from 100Wto 500W

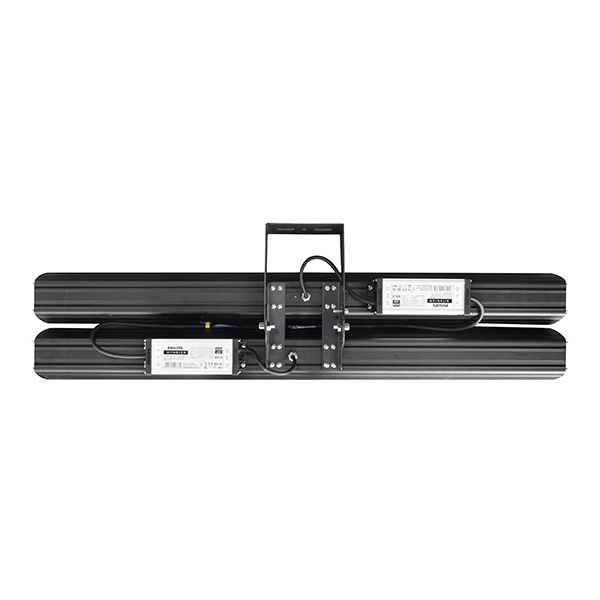

The shell is made of one-piece stretched aluminum material, equipped with high-brightness Philips LED chips and Philips power supply, and the PC lens has a high light transmittance
It can be installed flat or with a base, and the bracket allows for 180° adjustment
Secondary optics focuses the light beam within the maximum range onto the court area, minimizing light pollution to the greatest extent. It has a waterproof rating of IP67Suitable for various outdoor environments
Model | Power | Optical Lens | Dimensions（mm） | Total Lamp Weight | Light source | Protection Level |
OUNNUO OC-L-201 | 100 | Anti-glare single-sided P55° | 520*250*160 | 2.64kg | 3030\2835-20B5C*2 | 67 |
OUNNUO OC-L-202 | 200 | Anti-glare single-sided P55° | 520*345*160 | 4. 8kg | 3030\2835-20B5C*4 | 67 |
OUNNUO OC-L-301 | 150 | Anti-glare single-sided P55° | 770*250*160 | 3.27kg | 3030\2835-20B5C*3 | 67 |
OUNNUO OC-L-302 | 300 | Anti-glare single-sided P55° | 770*345*160 | 6kg | 3030\2835-20B5C*6 | 67 |
OUNNUO OC-L-401 | 200 | Anti-glare single-sided P55° | 1250*250*160 | 4.03kg | 3030\2835-20B5C*4 | 67 |
OUNNUO OC-L-402 | 400 | Anti-glare single-sided P55° | 1250*345*160 | 8kg | 3030\2835-20B5C*8 | 67 |
Each model can be customized to meet specific needs; actual specifications are subject to the physical product. | ||||||
