The product can be widely applied to outdoor large-scale tennis courts, pickleball courts, basketball courts, and other similar venues
The radiator is made of international 6063 profile extruded aluminum
High luminous efficiency Philips chip and Philips power supply, with high PC light transmittance
Lens 5050-96 beads are available in the following angles: 20°, 40°, 60°, 90°, single-sided p55°, and 3030-336 beads Optional angles: 40°, 60°, 90° single offset p55°; 3535-96 beads with an optional angle of 8° single offset p55°
It has an independent power supply box, ensuring better heat dissipation
Secondary optics focuses the light beam to the maximum extent within the stadium area, minimizing light pollution, with a waterproof rating of Ip67

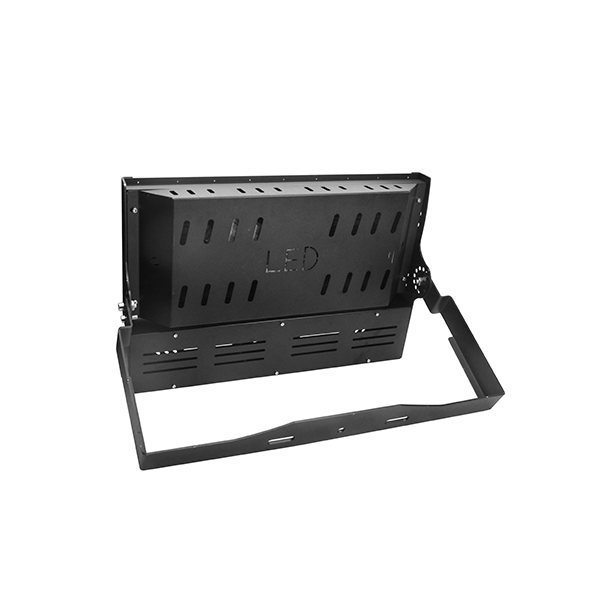

I-shaped bracket, widened base, adjustable base rotation, bracket installation, 180° adjustable
Model | Power | Optical Lens | Dimensions（mm） | Total Lamp Weight | Light source | Protection Level |
OUNNUO OC-M8-400 | 400 | Anti-glare single-sided P55° | 565*465*115 | 10300G | 3030-42B8C\3030-14B24C\5050-16B6C*2 | 65 |
OUNNUO OC-M8-600 | 600 | Anti-glare single-sided P55° | 565*605*115 | 12750G | 3030-42B8C\3030-14B24C\5050-16B6C*3 | 65 |
OUNNUO OC-M8-800 | 800 | Anti-glare single-sided P55° | 565*709*115 | 15200G | 3030-42B8C\3030-14B24C\5050-16B6C*4 | 65 |
OUNNUO OC-M8-1000 | 1000 | Anti-glare single-sided P55° | 565*823*115 | 17650G | 3030-42B8C\3030-14B24C\5050-16B6C*5 | 65 |
Each model can be customized to meet specific needs; actual specifications are subject to the physical product. | ||||||
