The product can be widely applied to outdoor tennis courts, pickleball courts, basketball courts, gateball courts, volleyball courts, baseball fields, and other similar venues
The radiator is made of international 6063 profile stretched aluminum, which has a good heat dissipation effect
High-efficiency Philips chips and Philips power supplies, with high light transmittance of PC
Secondary optics concentrate the maximum range of light beams onto the court area, minimizing light pollution to the greatest extent, with a waterproof rating of Ip67

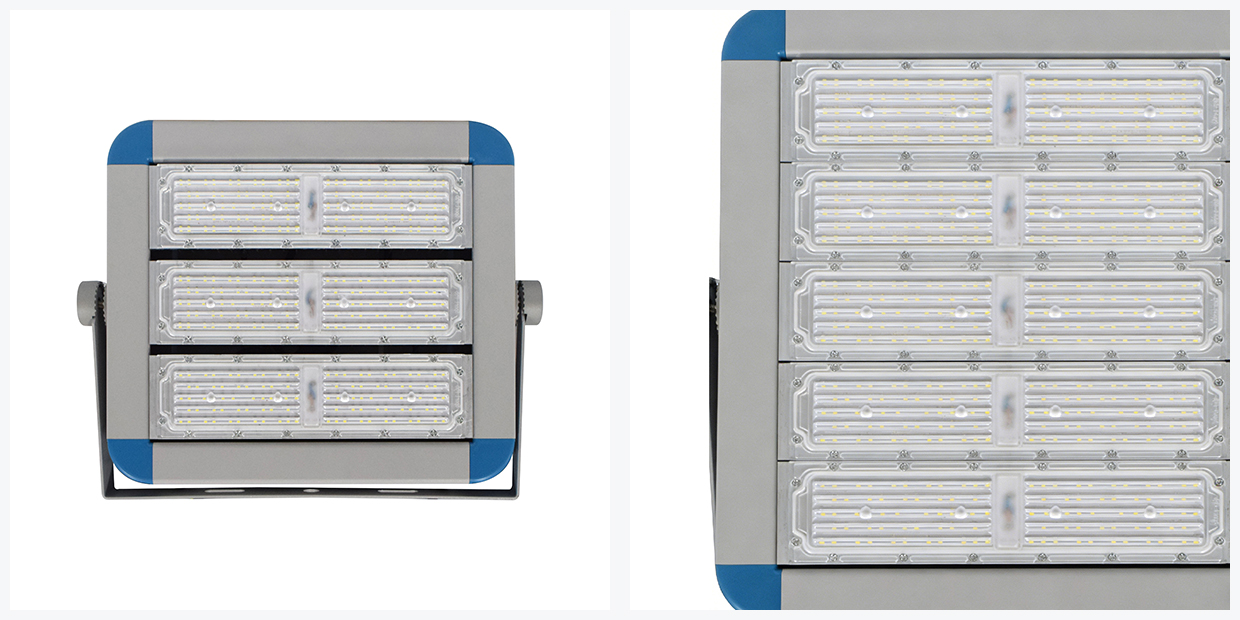

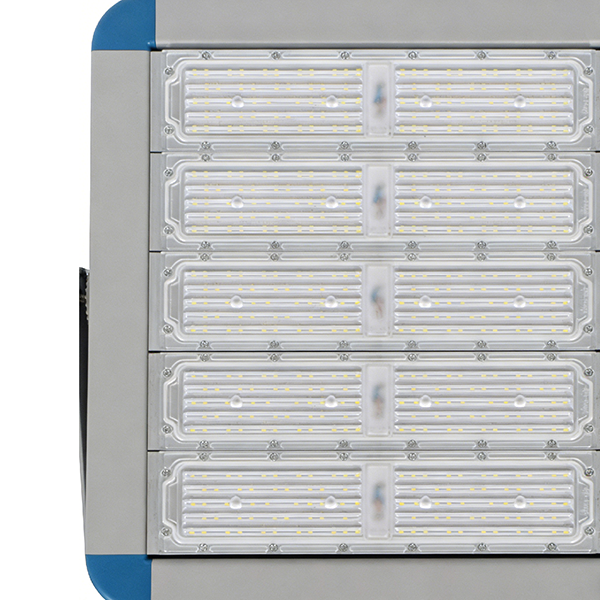

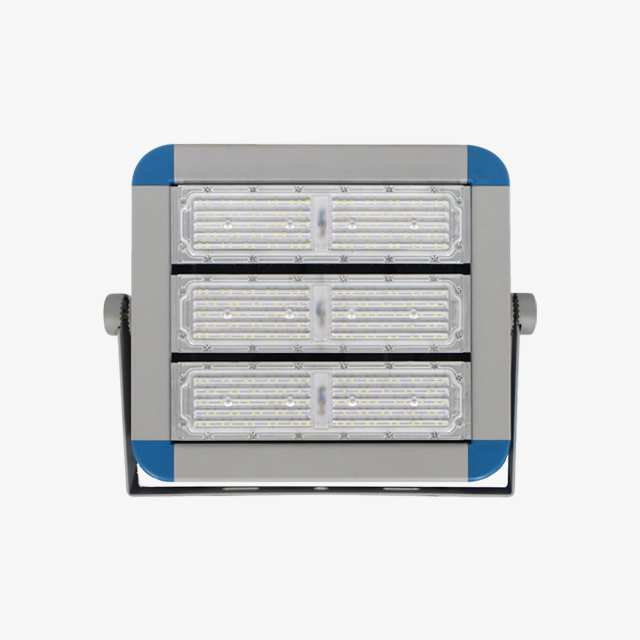

The lamp body adopts a modular design, with the outer frame themed in silver gray and the adapter in blue, resulting in a more aesthetically pleasing appearance overall
Installation of I-shaped bracket, bottom installation, and wall mounting
Model | Power | Optical Lens | Dimensions（mm） | Total Lamp Weight | Light source | Protection Level |
OUNNUO OC-M6-50 | 50 | Anti-glare single-sided P55° | 320*155*60 | 2018G | 3030\2835-20B5C*1 | 67 |
OUNNUO OC-M6-100 | 100 | Anti-glare single-sided P55° | 320*230*60 | 2917G | 3030\2835-20B5C*2 | 67 |
OUNNUO OC-M6-150 | 150 | Anti-glare single-sided P55° | 320*310*60 | 3971G | 3030\2835-20B5C*3 | 67 |
OUNNUO OC-M6-200 | 200 | Anti-glare single-sided P55° | 320*390*60 | 4976G | 3030\2835-20B5C*4 | 67 |
OUNNUO OC-M6-250 | 250 | Anti-glare single-sided P55° | 320*470*60 | 5977G | 3030\2835-20B5C*5 | 67 |
OUNNUO OC-M6-300 | 300 | Anti-glare single-sided P55° | 320*550*60 | 6979G | 3030\2835-20B5C*6 | 67 |
Each model can be customized to meet specific needs; actual specifications are subject to the physical product. | ||||||
